Adire Brahma Project |
In this project, I

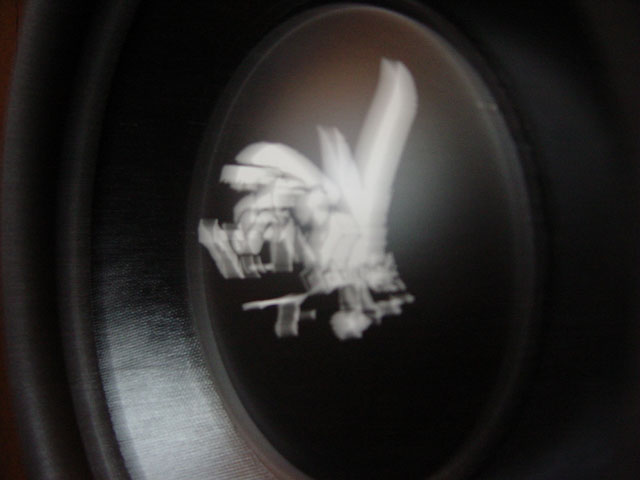

designed a custom enclosure specially for the Adire Brahma MKII. The Brahma is
an exceptional low frequency driver. With a thermal power handling of 4800W peak

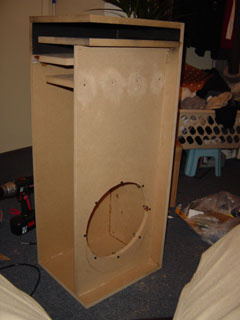

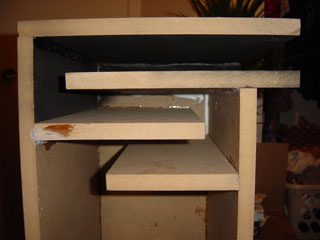

and 28mm xmax, this sub is pretty amazing. The enclosure I designed is 2ft^3
tuned to 28Hz. The low tuning frequency achieves SQL performance. It is

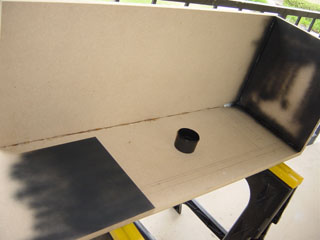

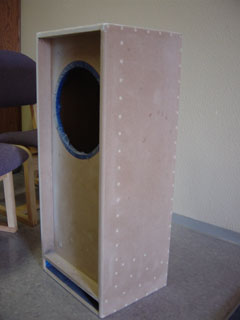

constructed of 3/4" MDF. Since the Brahma has about 2" of peak to peak

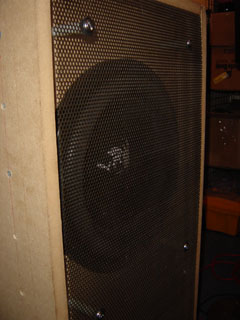

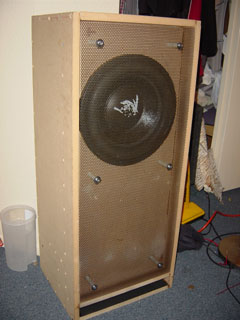

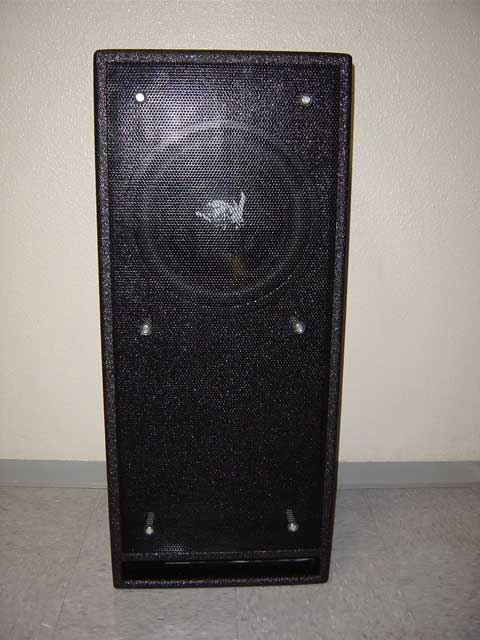

excursion, this enclosure incorporates a grill design that is often found in pro
audio application. It provides full protection while providing enough clearance
for the Brahma to run at its full potential.
|
